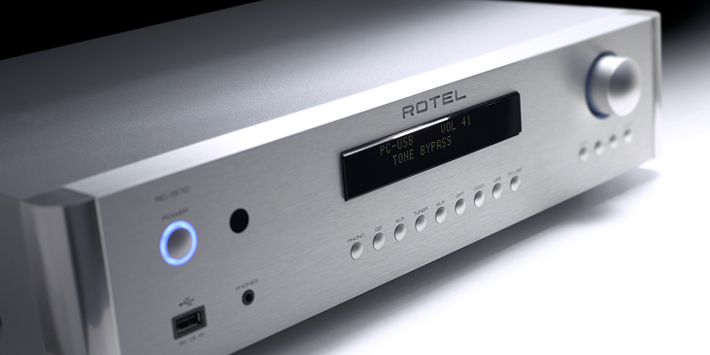

Stereo Preamplifier

RC-1570

The RC-1570 provides an entryway into higher performing separate components with all of the analog and digital inputs required by today's sources.

ICWolfson premium 24-bit/192kHz Digital to Analog Converter

USBFront panel USB for Apple iOS devices

TurntableMoving magnet phono input for turntable connection

BluetoothBluetooth dongle included

XLRBalanced XLR inputs and outputs

Engineered with care.

RC-1570 Internal View


Dimensions (W × H × D)
431 × 99 × 320mm
17" × 3.9" × 12.6"

Front Panel Height
2U / 88.1mm (3.5")

Power Requirements
120V, 60Hz

Power Consumption
25W

Standby Power Consumption
<0.5W

Net Weight
7kg (16lbs.)

BTU Rating
46 BTU/h

Components


Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.004%

Frequency Response
Line Level Inputs: 4Hz - 100kHz ±0.3dB
Digital Inputs: 10Hz - 95kHz ±3dB
Phono Input: 20Hz - 20kHz ±0.3dB

S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 110dB
Digital Inputs: 100dB
Phono Input: 80dB
Product Description

Separate components hold the promise of the best possible fidelity, since each device is optimized for its role in the sound reproduction chain. Rotel has been designing and manufacturing high performance components for dedicated enthusiasts for over 50 years.

Those decades of experience, along with precise and efficient in-house manufacturing, are fully evident in Rotel separates. As countless reviewers have testified over the years, they rival and frequently exceed the performance of much higher priced offerings. The new RC-1570 stereo preamplifier, a blend of cutting edge digital circuitry with on-board Digital-to-Analog conversion and classic analog stages, is the latest example.

Beneath the clean lines and user friendly fascia of the RC-1570 lies highly sophisticated engineering. Both analog and digital sources have been given equal consideration as today’s listener often has several digital sources, but may also enjoy legacy formats like vinyl LPs. A large toroidal transformer and regulated power supply ensures stable current and voltage requirements to all stages under dynamic conditions. Premium circuit components have been selected only after extensive listening evaluations. Careful routing of all low level signals has been practiced to ensure impressive signal to noise levels. The result is effortless musical dynamics, impressive detail and scale.

The RC-1570 stereo preamplifier is also extremely flexible. Four digital inputs (2 coax and 2 optical), plus the rear PC-USB input handle digital sources up to 24-bit/192kHz resolution. The digital inputs are designed for sources such as TV set-top boxes, flat panel TVs or Blu-ray players for stunning playback. The PC-USB input makes use of audio playback software such as iTunes or Windows Media Player to replay music from your computer digital library.

A Bluetooth dongle is provided to be used with the front USB input. A premium Wolfson stereo D/A converter handles critical conversion from digital data to analog. Analog inputs include balanced XLR connectors (perfect for connecting the RCD-1570 via its XLR outputs) in addition to four pair of conventional RCA inputs. A moving magnet phono stage rounds out the source capability. XLR and single ended outputs are provided, as are two 12-volt triggers to control on/off operation of an amplifier and/or other components and RS-232 on a standard DB-9 connector. In short, the RC-1570 is a tremendous value and the perfect upgrade for owners of older analog-only preamplifiers.

More Specifications
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.004%

Input Sensitivity
Line Level Inputs (RCA): 150mV
Line Level Inputs (XLR): 300mV
Phono Input (MM): 2.5mV

Input Impedance
Line Level Inputs (RCA): 24kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

Input Overload
Line Level Inputs: 4.3V
Phono Input: 65mV
Output Level
Unbalanced (RCA): 1V
Balanced (XLR): 2V

Output Impedance
Unbalanced (RCA): 100Ω
Balanced (XLR): 100Ω

Tone Controls
±10dB at 100Hz / 10kHz
Decodable Front USB Formats
MP3, WAV, WMA, Ogg Vorbis (up to 48kHz 16-bit)

Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)
