Integrated Amplifier

X3

The Michi X3 Integrated Amplifier delivers uncompromised audio performance conveniently packaged in an elegant industrial design. The X3 delivers 350 Watts of Class AB output power into 4 ohm loads maintaining musical accuracy with exceptional acoustic detail from the Analog, Digital, PC-USB, apt-X Bluetooth and Moving Magnet Phono Stage source inputs.

Amplifier Power Icon2 x 350 Watts of robust power

Class ABClass AB amplifier design

ICAKM premium 32-bit/768kHz Digital to Analog Converter

BluetoothBluetooth with apt-X and AAC

XLRBalanced XLR inputs

Engineered with care.

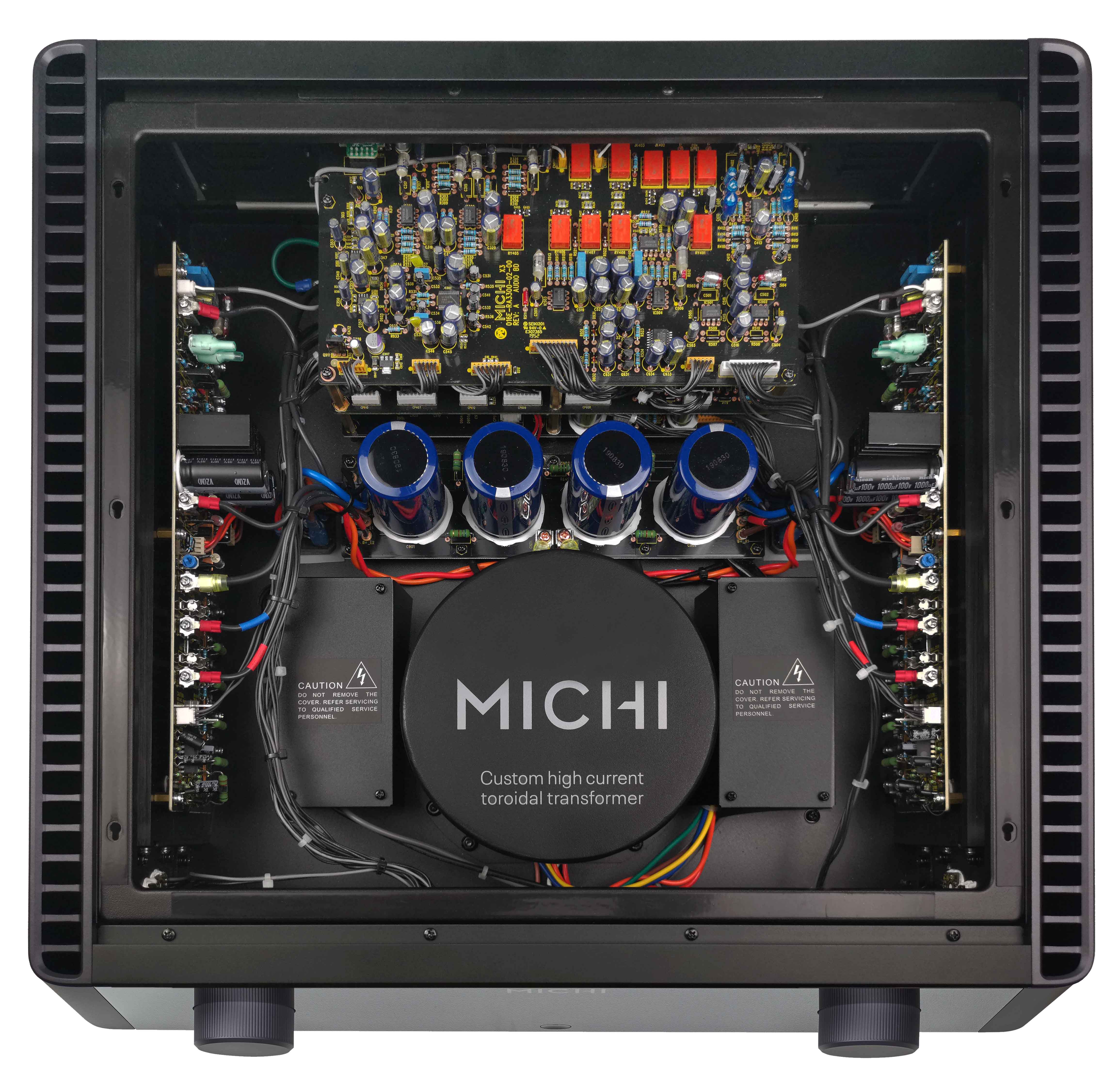

X3 Internal View


Dimensions (W × H × D)
485 x 150 x 452mm
19" × 6" × 17 3/4"

Front Panel Height
132 mm (5.25")

Power Requirements
120V, 60Hz

Power Consumption
500W

Standby Power Consumption
Normal: <0.5W
Network Wakeup: <2W

Net Weight
28.9kg (63.7 lbs.)

BTU Rating
1303 BTU/h
Maximum Power Output
350W/Ch (4Ω)

Continuous Power Output
200W/Ch (8Ω)

Total Harmonic Distortion (THD)
<0.008%

Frequency Response
Line Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB)
Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB)
Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)

S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 102dB
Digital Inputs: 102dB
Phono Input: 80dB
Product Description

The Michi X3 Integrated Amplifier delivers uncompromised audio performance with a full array of source inputs including Analog, Digital, PC-USB, XLR, apt-X Bluetooth and a Moving Magnet Phono Stage connection for classic vinyl lovers. The X3 is conveniently packaged in an elegant industrial design delivering 350 Watts of Class AB power into 4 ohm speakers while maintaining musical accuracy with exceptional acoustic detail.

Every aspect of the X3 has been custom engineered with all critical circuits and components hand selected through rigorous listening sessions and bench testing. Engineered with over 58 years of audio engineering experience the X3 is sure to bring countless hours of entertainment.

More Specifications
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%

Damping Factor (20Hz - 20kHz, 8Ω)
350

Channel Separation
>55dB

Input Sensitivity
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV

Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

Input Overload
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 60mV

Preout Level
1.9V

Output Impedance
100Ω

Tone Controls
±10dB at 100Hz / 10kHz

Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/384)*
*Driver installation required
DSD and DoP support
